Fabric Belt Conveyor

Product Information

Fabric Belt

Conveyor

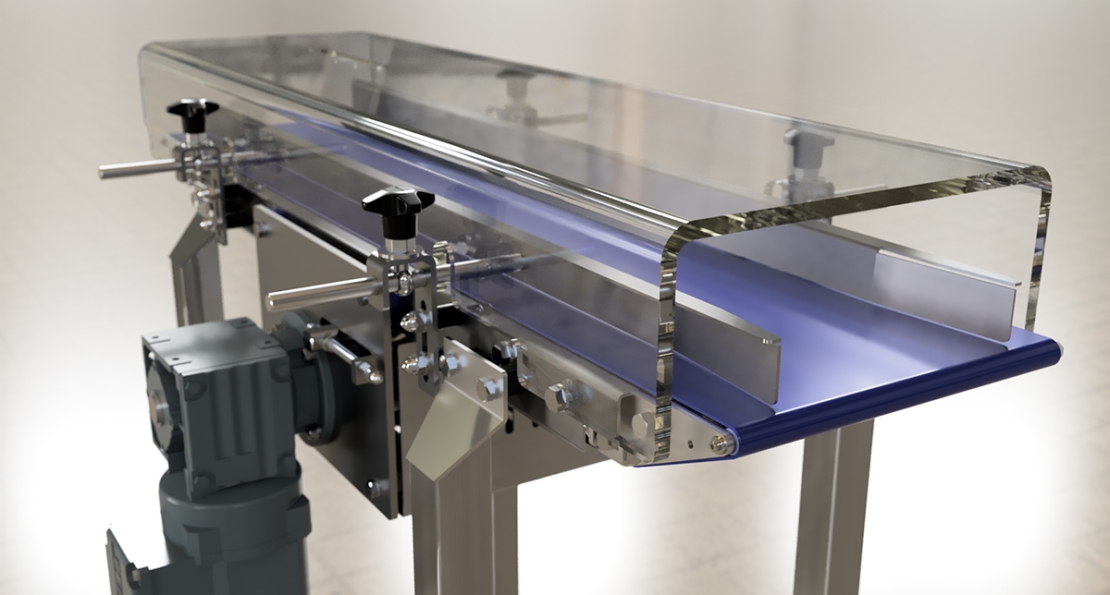

The fabric belt conveyor, with full length adjustable side guides and centre drive to aid small diameter transfer.

The model pictured has an additional full length transparent tunnel guard fitted.

  • Length - 2000mm
  • Width - 350mm roller width – 395mm over bed
  • Belt height 870mm +/-50mm
  • Belt width/Type - Low Friction FN 15N White
  • Speed choice 30m/min nominal @ 50hz
  • Motor – SEW shaft mounted fitted on right hand side in direction of travel
  • 0.25kw 230/400v 3-phase (Dual voltage)
  • 80mm diameter drive roller
  • 20mm diameter transfer roller at drive end to aid product transfer (as supplied on previous projects for yourselves)
  • 48mm diameter tail roller
  • Stainless Steel Bed and leg frame
  • Full length adjustable side guides – 40mm wide plastic ‘T’ section
  • CE Documentation will be supplied.
Fabric Belt Conveyor
HARD WEARING

Solid reliable design and build provide essential low mainentance.

HARD WORKING

Built for high volume daily usage to keep your production line moving.

HARD TO BEAT

For value and build quality, the Fabric Belt Conveying range is hard to beat.

The robust answer to your conveying requirements
